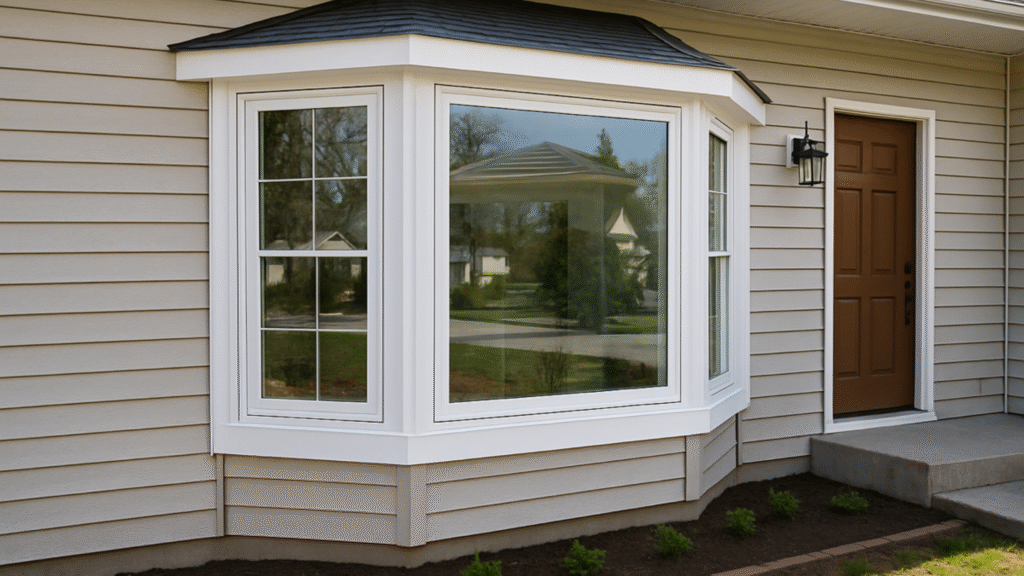

Bay Window Installation: Process, Cost, and What to Expect

A bay window projects outward from the wall to expand your interior space, pull in natural light, and add architectural character to your home. Because these units are heavy and multi-panel, installation involves structural framing, load support, a small roof, and weatherproofing, which is why professional installation is the right call for almost every Bay Area home. This guide walks through how a bay window is installed, what it costs, and what to expect from start to finish.

Ready now? Request your free in-home estimate or call our team, and we will measure your opening and give you an exact quote.

What Bay Window Installation Involves

A bay window is not a single window. It is an assembly of three or more panels that projects out from the wall, usually a large fixed center panel flanked by two angled side windows. That projection is what creates the extra interior space and the wider view, and it is also what makes installation more involved than a flat window swap.

Because the unit cantilevers out and carries real weight, a proper installation includes four things a standard window does not:

How a Bay Window Is Installed, Step by Step

Here is the typical sequence our Bay Area crews follow. Most replacements into an existing bay take 1 to 3 days; cutting a brand-new opening with structural work can run up to about 5 days.

1. Assessment and measurement. We evaluate your wall structure, confirm whether the wall is load-bearing, and choose the projection angle (usually 30, 45, or 90 degrees). Then we custom-size the unit to your opening.
2. Permit and custom order. We pull the building permit and order your made-to-measure bay window. Custom units typically take a few weeks to manufacture.
3. Remove and frame the opening. We remove the old window or open the wall, then frame the opening with a properly sized header and supports.
4. Set the bay unit. The assembled bay is positioned in the opening, then leveled, plumbed, and squared so every panel operates smoothly.
5. Add load support. We install knee braces beneath the unit, support cables from above, or both, sized to carry the weight of the projection over the long term.
6. Build the roof and weatherproof. We frame the small bay roof, then add flashing, insulation, and weather sealing to protect against fog, wind-driven rain, and marine air.
7. Finish inside and out. We complete drywall, trim, and the interior seat, then match exterior siding and trim, and clean up before we leave.

Bay Window Layout and Projection Angles

The angle where the side windows meet the center panel sets the look and the footprint of your bay. The diagram below shows a standard top-down layout.

A three-panel bay window in plan view: a fixed center panel with two angled, operable side windows.

Support: Knee Braces vs Support Cables

Because a bay window hangs out past the wall, it needs support so it does not sag, pull away, or leak over time. There are two main methods, and larger units often use both.

• Knee braces: angled brackets fastened beneath the unit to the wall framing, carrying the load from below. They are reliable and common, and they sit under the bay where they can be concealed by the exterior finish.
• Support cables: steel cables or rods run from the structure above down to the bay, carrying the load from the top. They are useful for larger or heavier units, or where bracing below is not practical.

Bay Window Installation Cost

Bay window installation cost varies with the type of bay, the materials, and how much structural and roofing work your opening needs. The ranges below are typical installed prices for Bay Area homes. For an exact figure, request a free in-home estimate.

Professional labor usually accounts for 40 to 50 percent of the project, in the range of $800 to $2,500, depending on complexity. The cost factors below are added based on your home’s specific conditions:

Want to estimate your own project? Try our bay window cost calculator or see typical bay window sizes and prices.

Frame Materials and Glass Options

A bay window combines multiple panels, so the frame material and glass affect both performance and price. Insight Glass installs three frame materials, each chosen for Bay Area conditions:

• Vinyl: low-maintenance and energy-efficient, typically $1,500 to $3,500 for materials. A popular choice for coastal and inland homes alike.
• Fiberglass: durable and dimensionally stable, typically $2,500 to $5,000 for materials. An excellent option near the coast, where it resists fog and salt air.
• Aluminum: slim sightlines and high durability for larger openings and modern designs, often paired with a thermal break to improve efficiency.

For the glass, we recommend double or triple-pane units with Low-E (low-emissivity) coatings, which control solar heat gain across the bay’s multiple orientations and help your project meet Title 24, the California energy code. See our guide to energy-efficient windows for more on U-Factor and SHGC (Solar Heat Gain Coefficient).

Permits, Difficulty, and DIY vs Professional

Bay window installation is one of the more demanding window projects. The unit is heavy, the opening usually needs structural framing, the projection needs load support, and the top needs a weatherproof roof. Done wrong, the result is a bay that sags, sticks, or leaks, and water damage that is far more expensive than the original install.

For those reasons, this is not a typical do-it-yourself job, especially when you are cutting a new opening into a wall. In most Bay Area cities a building permit is required, and a load-bearing wall may also call for an engineer’s review. A professional installer handles the permit, sizes the support correctly, ties the roof and flashing into your existing structure, and backs the work with a warranty. Insight Glass manages all of it from start to finish.

Replacement vs New Bay Window Installation

Replacing an existing bay window usually costs 30 to 50 percent less than a brand-new installation, because the structural support and roof are already in place. It is also faster, and it is a good chance to upgrade to better energy efficiency and smoother operation while keeping the proven structure.

Installing a new bay where none existed requires opening the wall, adding structural support, building a new roof, and matching the exterior, so it takes longer and costs more. It often involves coordination with framers and roofers, and may require a structural engineer. If you are weighing a bay against other styles, compare it in our bay window vs bow window guide, or read about new construction window installation.

Frequently Asked Questions

Get Your Bay Window Installation Estimate

A bay window is one of the highest-impact upgrades you can make, adding light, space, and curb appeal, but it only delivers when it is framed, supported, and sealed correctly. That is exactly what you get with Insight Glass: precise measurement, the right support for your unit, code-compliant permits, and a clean, weather-tight install.

Since 1987, Insight Glass has installed windows and patio doors across the Bay Area, from San Francisco and Oakland to San Jose, Walnut Creek, and Napa. Request your free in-home estimate today and we will help you plan the right bay window for your home and budget.
