How to Measure for a New Construction Window

Knowing how to measure for a new construction window ensures proper fit and performance in Bay Area building projects. Accurate measurements of rough openings prevent costly ordering errors and installation delays during new home construction or additions.

Understanding New Construction Window Measurements

How to measure for a new construction window differs significantly from measuring for replacement installations. New construction windows are installed in rough openings during the framing stage, before exterior siding or interior drywall is installed.

The rough opening represents the framed opening in your wall where the window will sit. This measurement must account for the actual window frame dimensions plus necessary space for shims, insulation, and adjustments. Bay Area builders follow these measurement standards whether constructing new homes in San Jose, additions in Oakland, or remodels in San Francisco.

Unlike replacement windows that fit within existing frames, new construction units need precise rough opening dimensions to ensure proper installation and weather protection.

Tools You’ll Need

Gather the right measuring tools before starting. You’ll need a quality tape measure—25 feet works well for most residential applications. A level helps verify that the opening is plumb and level. Bring a notepad or use your phone to record measurements immediately.

A framing square helps check for square alignment at the corners. A pencil lets you mark reference points on framing members. Having a helper makes measuring easier and more accurate, especially for larger openings.

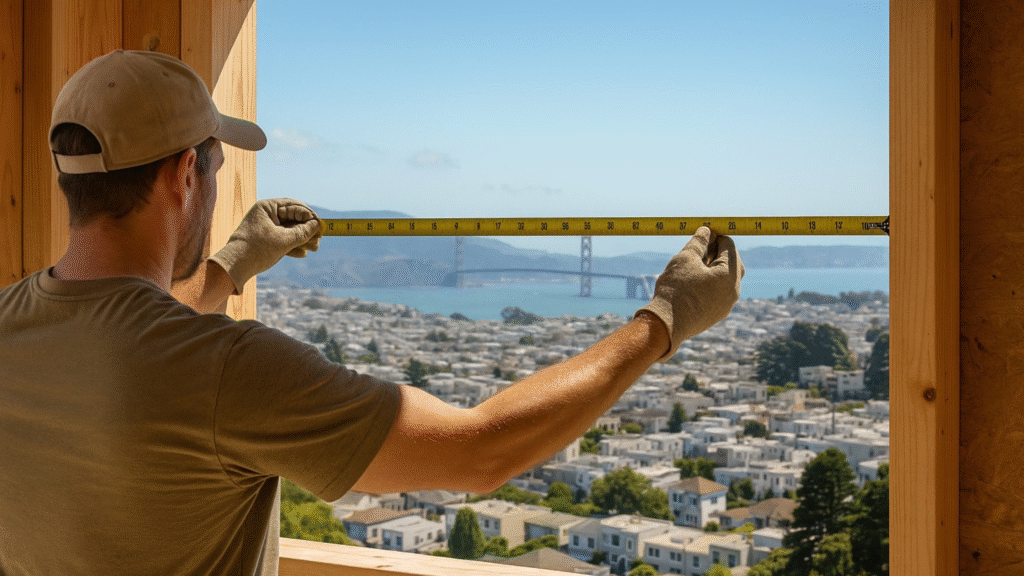

Measuring the Rough Opening

Start by identifying the rough opening boundaries. The opening consists of the header at the top, the sill at the bottom, and king studs on each side. These framing members define where your window will be installed.

Measure the width first. Take three measurements across the opening: at the top near the header, at the middle, and at the bottom near the sill. Record all three measurements. The smallest measurement determines your actual width—this accounts for any variations in the framing.

Next, measure the height. Take three vertical measurements at the left, center, and right sides of the opening. Again, use the smallest measurement as your height dimension.

Height and Width Requirements

Measuring for a new construction window requires understanding the relationship between the rough opening size and the actual window dimensions. Manufacturers specify rough opening requirements for each window unit based on the frame size.

Most new construction windows need roughly 1/2 inch of clearance on all sides. This extra space allows for shimming the window level and plumb during installation. For example, a window with a 36-inch frame width typically requires a 37-inch rough opening width.

Check the manufacturer’s specifications for exact rough opening requirements. Bay Area building codes and manufacturers may have specific standards that affect these dimensions. Window suppliers provide rough-opening charts showing the required framing dimensions for each window size.

Checking for Square and Level

Accurate measurements mean nothing if the rough opening isn’t square and level. Use your level to check that the sill sits level horizontally. Place the level against the header to verify it’s also level.

Check both side jambs with the level to ensure they’re plumb—perfectly vertical without leaning. An out-of-plumb opening creates installation problems and potential water infiltration issues.

Measure diagonally from corner to corner in both directions. If both diagonal measurements match, the opening is square. Differences indicate the opening is out of square, which requires correction before window installation proceeds.

Bay Area contractors pay special attention to level and plumb in earthquake country. Properly aligned windows perform better during seismic events and everyday use.

Accounting for Framing and Shims

Understanding how to measure for a new construction window includes planning for shims and proper framing. The rough opening must provide adequate space for installation adjustments without being so oversized that the window can’t be adequately secured.

Shims fill gaps between the window frame and rough opening, allowing installers to position the unit perfectly level and plumb. Standard practice leaves approximately 1/4 to 1/2 inch on each side for shimming.

Check that framing members provide solid nailing surfaces. The header, sill, and king studs must be substantial enough to support the window and transfer loads to the building structure. Bay Area wind and seismic requirements sometimes necessitate additional framing reinforcement.

Verify the sill sits at the correct height above the floor. Window manufacturers specify sill height requirements that affect both interior and exterior finish details. An incorrect sill height creates problems when installing trim and siding.

Common Measurement Mistakes to Avoid

Several common errors occur when learning to measure for a new construction window. Avoiding these mistakes saves time and prevents ordering incorrect window sizes.

Don’t assume the opening is square or level without checking. Even experienced framers occasionally create openings that need adjustment. Always verify with tools rather than trusting visual assessment.

Avoid measuring only once at each dimension. Taking multiple measurements across the width and height catches framing inconsistencies before they become installation problems.

Don’t forget to account for the difference between rough opening and window frame dimensions. Ordering windows based on rough opening measurements without subtracting the required clearance results in units that are too large to fit.

Remember that manufacturers specify rough opening requirements differently. Always consult the specific window line’s installation instructions rather than assuming standard dimensions apply universally.

Recording and Ordering Your Windows

Document all measurements clearly and thoroughly. Record the width and height of each rough opening, along with notes about which room or elevation the window serves. Note any special conditions, such as out-of-square openings, that may need attention.

Include diagonal measurements in your notes. These help verify square conditions and assist installers during the actual window installation.

When ordering windows, provide the manufacturer with rough opening dimensions and request confirmation of correct window sizes. Reputable suppliers double-check that window frames will fit properly within your measured openings.

Consider Bay Area climate factors when specifying windows. Coastal properties need corrosion-resistant materials. Areas with significant temperature swings benefit from enhanced energy efficiency features. Locations near busy streets require better sound insulation.

Order windows early in the construction schedule. Lead times vary, and having windows on-site when framing reaches that stage keeps projects moving smoothly. Missing windows delay both exterior and interior finish work, affecting overall construction timelines throughout the Bay Area’s competitive building environment.

Understanding how to measure for a new construction window properly ensures your building project proceeds without sizing errors or installation delays. Accurate measurements, careful verification, and adherence to manufacturer specifications result in successful window installations that perform well for decades in Bay Area homes.
